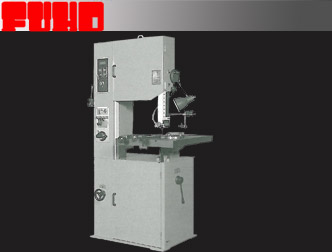

VBS2012H

MODEL	VBS-2012H	VBS-2012HE
Max. Throat Capacity	508mm;20 inch
Max. Work Height	305mm;12 inch
Wheel Diameter	515mm x 2 ; 20-1/4 inch x 2
Blade Speed	Low 15-125 , Hl 165-1500 M/min Low 50-415 , Hl 550-5000 F/min
Main Drive Motor	3 HP ; 2.2 KW
Table Size	600 x 700 mm 23-1/2 x 27-1/2 inch
Table Tilt	R-45 , L-10°
Table Height	1016mm; 40 inch
Max. Blade Length	4065mm; 160 inch
Max. Blade Width	25.4mm; 1 inch
Welder Capacity	19mm; 3/4 inch
Measurement	1090 x 810 x 2030 mm 43 x 32 x 80 xinch
Net Weight	590 kgs	625 kgs
Table Feed Power		80 Kgcm ; 110V
Table Stroke		300 mm; 12 inch
