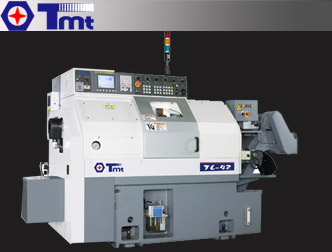

TL series
|
Description |
Unit |
TL-34 |
TL-42 |
TL-160J |
|
Capacity |
Cutting diameter |
mm |
34 |
42 |
155 |
|
Cutting length |
mm |
180 |
180 |
180 |
|
CNC Control |
|
|
FANUC or MITSUBISHI |
|
Turret |
Type of turret |
|
Octogonal V8
(Servo turret) |
Octogonal V8
(Servo turret) |
|
Tool shank height |
mm |
(*20) |
(*20) |
|
Boring bar shank diameter |
mm |
( 25) |
( 25) |
|
Revolving
Motor |
Spindle motor |
kw |
5.5 / 7.5 |
5.5 / 7.5 |
|
X-axis servo motor |
kw |
1.2 |
1.2 |
|
Z-axis servo motor |
kw |
1.2 |
1.2 |
|
Rapid Traverse |
Spindle speed |
rpm |
10-5000 |
10-4000
(5000 OPT.) |
|
X-axis rapid traverse |
m/min |
12 |
12 |
|
Z-axis rapid traverse |
m/min |
16 |
16 |
|
Machine
Attachments |
Hydraulic motor |
HP |
2 |
2 |
|
Coolant motor |
HP |
1 |
1 |
|
Part catcher |
|
● |
● |
● |
|
Coolant oil level detector |
|
● |
● |
● |
|
Lub. motor |
|
● |
● |
● |
|
Lighting |
|
● |
● |
● |
|
Machine
Dimensions |
L x W x H |
mm |
2240 x 1350 x 1730 x (2290 x 1470 x 2000) |
|
N.W.(G.W.) |
kg |
2500(2750) |
* All specifications, dimensions and design characteristics are subject to change without prior notice.
|
|
|
|
|
|
 |
 |
